LAUNCH (SmartSafe) ELA320 INTELLIGENT DIGITAL POWER SUPPLY FOR EV

AllEV (ELECTRIC VEHICLE) TOOLS & EQUIPMENT

Previous 12 / 13 Next

LAUNCH (SmartSafe) ELA320 INTELLIGENT DIGITAL POWER SUPPLY FOR EV



*Kindly Check For Stock Available From Us*


!!Price Subject To Change Without Prior Notice!!


Special Item Required Pre-Order From Our Warehouse.
Pre-Order Waiting ETA :
If Stock At Non-Johor Warehouse, Required 3 - 5 Working Days
If Stock Required Oversea Order, Reqiured Minimum 1 - 3 Months (Working Day)


Please Do Not Hesitate To Contact Us For MORE Information!

SMFTOOLS Customer Service Hotline (012-6868099/010-7110168/017-2211141)
Working Hour
Monday-Saturday 9:00AM-5:00PM
Sunday 10:30AM-2.30PM (Contact Before Visit)

Location Address: NO.55, JALAN JALAN SRI PUTRA 2, BANDAR PUTRA, 81000 KULAI, JOHOR, MALAYSIA.

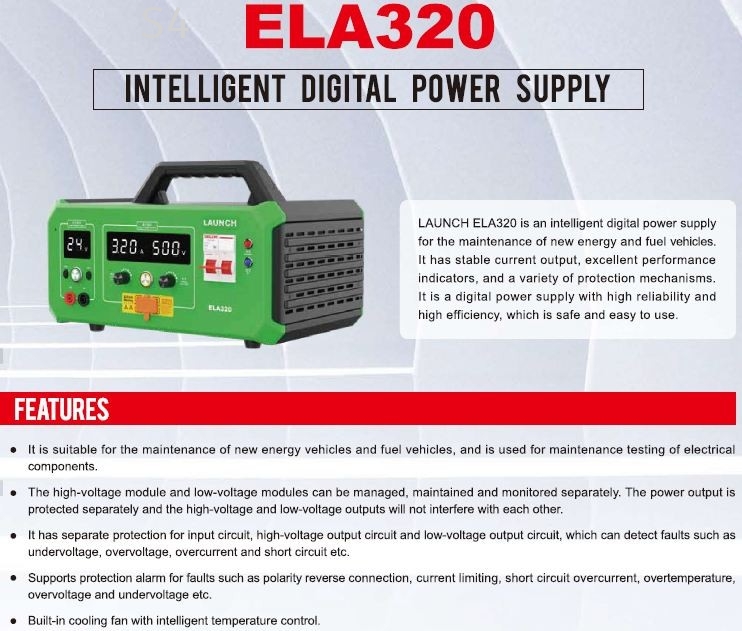

LAUNCH (SmartSafe) ELA320 INTELLIGENT DIGITAL POWER SUPPLY FOR EV

LAUNCH ELA320 is an intelligent digital power supply for the maintenance of new energy and fuel vehicles. It has stable current output, excellent performance indicators, and a variety of protection mechanisms. It is a digital power supply with high reliability and high efficiency, which is safe and easy to use.

Features

  • It is suitable for the maintenance of new energy vehicles and fuel vehicles, and is used for maintenance testing of electrical components.
  • The high-voltage module and low-voltage modules can be managed, maintained and monitored separately. The power output is protected separately and the high-voltage and low-voltage outputs will not interfere with each other.
  • It has separate protection for input circuit, high-voltage output circuit and low-voltage output circuit, which can detect faults such as undervoltage, overvoltage, overcurrent and short circuit etc.
  • Supports protection alarm for faults such as polarity reverse connection, current limiting, short circuit overcurrent, overtemperature, overvoltage and undervoltage etc.
  • Built-in cooling fan with intelligent temperature control.
Specification
  Power Input   AC 110V~240V@16A, 50/60Hz
  Output Parameters   High-voltage voltage             DC 250V~750V
  High-voltage current   0~5A
  Low-voltage voltage   DC 12, 24V
  Low-voltage current   1A
  Output Voltage Precision   0.1V
  Output Current Precision   0.1A
  Control Panel   High voltage   Voltage regulation, current regulation, output button switch
  Low voltage   Button switch DC 12, 24V voltage, output button switch
  Display Method   Eight-segment white LED digital display
  Communication Method     Bluetooth(BLE4.2)
  Dimensions   315*192*186(mm)
  Weight   4.85kg

  SAFETY TEST
  Insulation Resistance   AC input-case   DC1000V, ≥10MΩ(room temperature)
    DC out-put case   DC1000V, ≥10MΩ(room temperature)
    AC input-DC output   DC1000V, ≥10MΩ(room temperature)
  Withstand Voltage Test   AC input-case   AC2000V, 50Hz, ≤10mA, 60S
    DC out-put case   AC2000V, 50Hz, ≤10mA, 60S
    AC input-DC output   AC2000V, 50Hz, ≤10mA, 60S

  WORKING ENVIRONMENT
  Working Temperature   -10~+65℃
  Working Environment Humidity   5~95% relative humidity(no condensation)
  Storage Temperature   -40~+70℃
