LAUNCH IRT01 | Insulation Resistance Tester
| Previous | 7 / 15 | Next |
Introduction
Download Files
SmartSafe_IRT01_Insulation_Resistance_Tester_Product_Catalog.pdf (200.91 KB)SmartSafe_IRT01_Insulation_Resistance_Tester_User's_Manual.pdf (4.33 MB)
- EV DIAGNOSTIC TOOL
- SMARTSAFE
- SMARTSAFE IRT01
- IRT01 INSULATION RESISTANCE TESTER
- INSULATION RESISTANCE TESTER

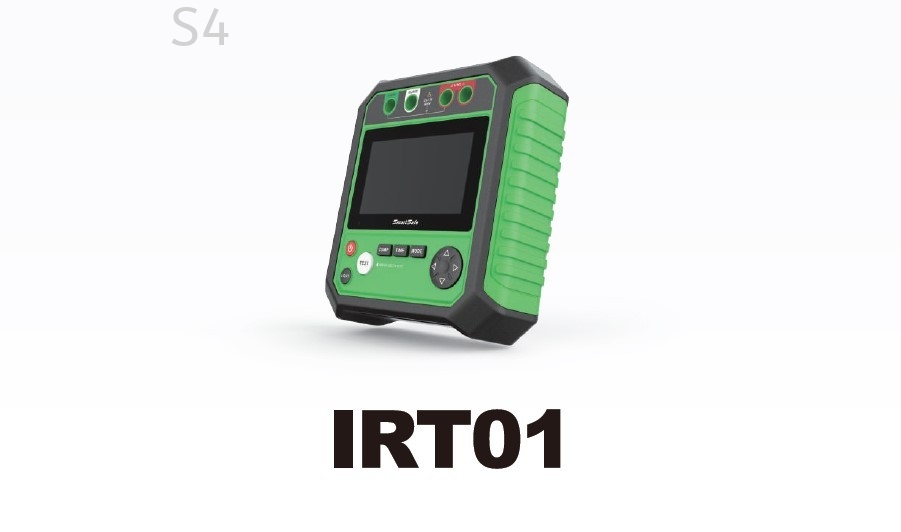

LAUNCH (SMARTSAFE) IRT01 INSULATION RESISTANCE TESTER
Model : IRT01 (Old Model Name : iSmartEV RT100)
IRT01 insulation tester is equipped with powerful measurement and data processing software; thus, it can complete measurement of the insulation resistance, voltage, and other parameters. Its stable performance and easy operation are suitable for field measurement and maintenance users of power equipment and power supply lines.
What Can Be Solved
in Your Shop?
in Your Shop?
IRT01 is an insulation resistance tester for electric vehicle insulation resistance measurement. It supports three modes of comparative measurement, continuous measurement and timed measurement, and can measure AC and DC voltage.
| Functions | Description | √ |
|
Insulation Resistance Test
|
Support the selection of 500V/1000V/2500V/5000V output voltage range, support comparison measurement, continuous measurement, timing measurement three modes
|
√ |
|
Voltage Measurement
|
Support DC and AC voltage measurement
|
√ |
|
Other Functions
|
Support LCD backlight, automatic shutdown after 15 minutes without operation, over-range alarm, high-voltage warning indication | √ |
Specification
|
Output voltag
|
500 V/1000 V/2500 V/5000 V
|
DC measurement
|
±30 V~±600 V DC, resolution: 1 V, accuracy:±2%
|
|
Insulation Resistance
|
500V:10MΩ~20GΩ
|
AC measurement
|
±30 V~±600 V AC,resolution: 1 V, accuracy:±2%
|
|
1000V:10MΩ~40GΩ
|
Display Mode
|
5-inch display
|
|
|
2500V:10MΩ~100GΩ
|
Battery
|
3150mAh/11.4V
|
|
|
5000V:10MΩ~1000GΩ
|
Temperature
|
0~50¡æ
|
|
|
Short-circuit Current
|
£¼3.0mA
|
Dimension
|
190×207×72mm
|
