Launch EB240 | EV Battery Cell Equalizer

AllEV Specialist Tools, Equipment & Solutions

Previous 6 / 15 Next

Launch EB240 | EV Battery Cell Equalizer

IntroductionDemo SimulationUsage Scenario

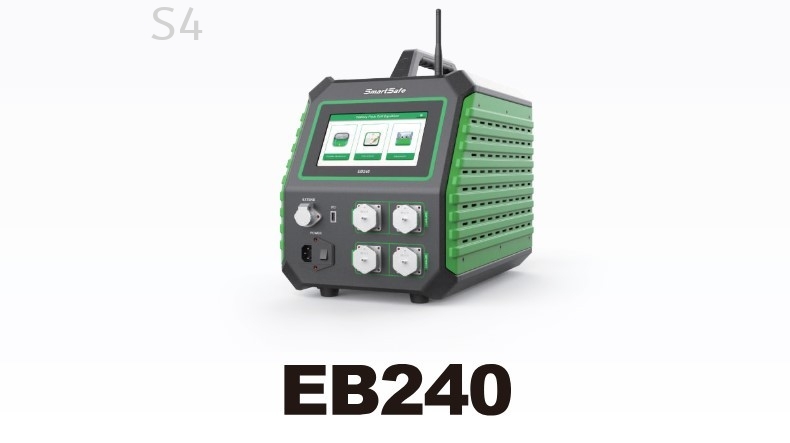

LAUNCH (SMARTSAFE) EB240 EV BATTERY CELL EQUALIZER

Model : EB240 (Old Model Name : (iSmartEV EB240)


EB240 Battery Equalizer is a battery maintenance equipment specially designed for electric batteries developed by SmartSafe. It is used to quickly solve cruising range degradation caused by the difference in cell capacity due to inconsistent cell voltages. It has the characteristics simple operation, stable performance, strong anti harmonic ability and convenient carrying. It can be applied to power battery production, new energy vehicle enterprise R&D, new energy battery pack maintenance and other scenarios.

EB240 is mainly used for lithium battery pack charge & discharge test and equalizing maintenance, suitable for various voltage level. (No corrosive, no explosive, no electrical breakdown air or conductive dust.)
Functions Description √
Balancing Maintenance
Supports charging, discharging, and balancing modes for lithium-ion batteries like ternary lithium,lithium iron phosphate, lithium titanate, and lithium manganese
 √
Parameter Configuration
Pre-settable work modes, battery types, voltage thresholds, operating currents, cell series numbers, and other parameters
 √
Multiple Protections
Supports overvoltage, undervoltage, overcurrent, output short circuit, reverse polarity protection, and overheat protection
 √
Data Visualization
 Real-time monitoring of voltage, current, charge-discharge status, and capacity of individual cells during the balancing process √
Data Analysis
Automatically stores historical balancing records, supports data presentation in both graph and bar chart formats
 √

Data Export
Historical data can be exported to a USB drive as Excel files
 √

Specification

Power Input AC90~264V/40~60Hz Wireless Communication WiFi and BT(external WiFi antenna)
Power 600W Max Equalize Number of Channels 2X12Pin
Charge and Discharge Voltage Range 1.8~4.2V Equalize Interface 16Pin
Voltage Detection Accuracy 士0.1% FS2±mV  (maximum range 5V) Battery Interface 24Pin
Charge and Discharge Current Range 0.1~5A Max Display 7-inch TFT LCD screen,resolution 1024X600
Current Detection Accuracy 土1% FS+0.05A (maximum range 5A) Communication Interface SMA,USB-Device
Battery Temperature Detection Accuracy 士2°C(-25C~ 85°C) Charge Control Constant current charging+constant voltage charging
Discharge Mode Constant current discharging + constant voltage discharging
Protection Function Input over-current protection, over-voltage protection, output over-current protection, over-temperature protection
Important Info
 1. Product designs and specifications are subject to change without prior notice
2. Please check stock availability with us before purchase.
3. Special order items require pre-order:
Pre-Order Waiting ETA :
Malaysia Warehouse (Non-Johor) : 3 - 5 Working Days
Overseas Order : 1 - 3 Months (Working Day)
