*Special Order* SmartSafe (Powered By Launch) EP401 | EV Battery Charge & Discharge Equipment

AllEV Specialist Tools, Equipment & Solutions

Previous 27 / 36 Next

*Special Order* SmartSafe (Powered By Launch) EP401 | EV Battery Charge & Discharge Equipment

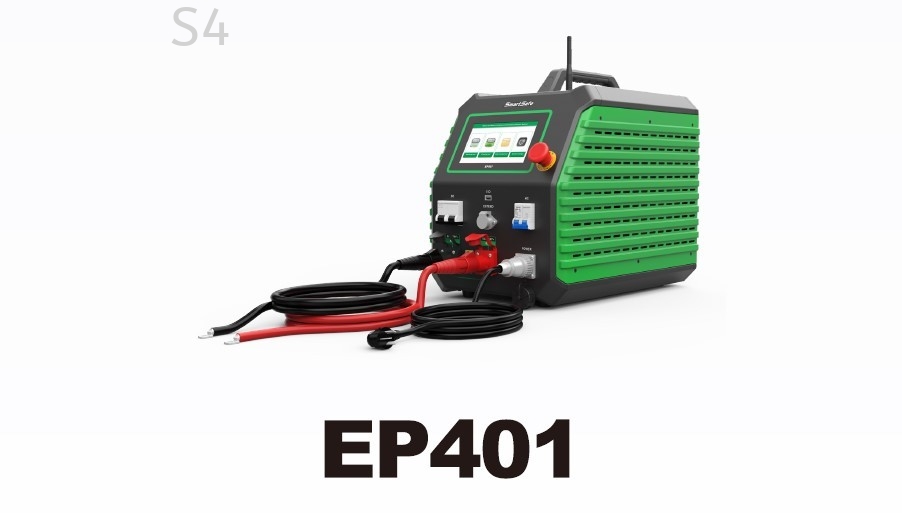

LAUNCH (SMARTSAFE) EP401 EV BATTERY CHARGE & DISCHARGE EQUIPMENT

Model : EP401


The EP401 is a battery pack module integrated charge-discharge machine designed based on the characteristics of lithium-ion batteries used in electrical vehicles. It can efficiently perform the charging, discharging, and balancing of battery pack modules, thereby enhancing the efficiency of battery pack maintenance.

Functions Description √
Charge/discharge test Adopting a wide voltage design, it is suitable for charging and discharging tests of battery modules of different voltage levels. Supports various lithium batteries and nickel metal hydride batteries. √
Health assessment Support battery health status assessment, unique software algorithm to obtain SOC/SOH value. √

Single unit and terminal voltage collection
 Supports real-time acquisition of pack terminal voltage and individual cell voltage. √
Single battery core protection Cell current and voltage protection thresholds can be set to prevent overcharge and over-discharge. √
Terminal charging and discharging protection Supports overvoltage, undervoltage, overcurrent, output short circuit, reverse connection protection and overtemperature protection. √
Data visualization During the charging and discharging process, the voltage of each single cell, terminal voltage, terminal current, the charging and discharging status, the charging and discharging capacity, etc. are monitored in real time. √


Specification
Power Input AC90~264V/40~60Hz Discharge Current Range Max current:100A/ max power:7.2kW
Display 7-inch TFT LCD screen, resolution 1024X 600 Charge Control Constant current charging + constant voltage charging
Data Communication CAN, RS485 Discharge Mode Constant current discharge
Group Terminal Voltage Accuracy ≤士0.5%FS+0.3V, resolution:0.1V Charge, Discharge Protection Overcharge and over-discharge protection, over-high temperature protection
Single Voltage Accuracy ≤+0.1%FS+5mV, resolution:0.001V Host Protection Over-temperature, over-current and out-of controcurrent trigger shutdown protection
Test Current Accuracy ≤士1%FS+0.2A, resolution:0.1A Reverse Polarity Protection Supported
Charge and Discharge Voltage Range DC 2~420V Abnormal Protection Power cord power failure, main cable power failure
Charge Current Range Maximum current 100A, maximumpower 4.4kW Over-temperature Protection The resistance box over-temperature is 85°C; Radiator over temperature is 100°C
Important Info
 1. Product designs and specifications are subject to change without prior notice
2. Please check stock availability with us before purchase.
3. Special order items require pre-order:
Pre-Order Waiting ETA :
Malaysia Warehouse (Non-Johor) : 3 - 5 Working Days
Overseas Order : 1 - 3 Months (Working Day)
