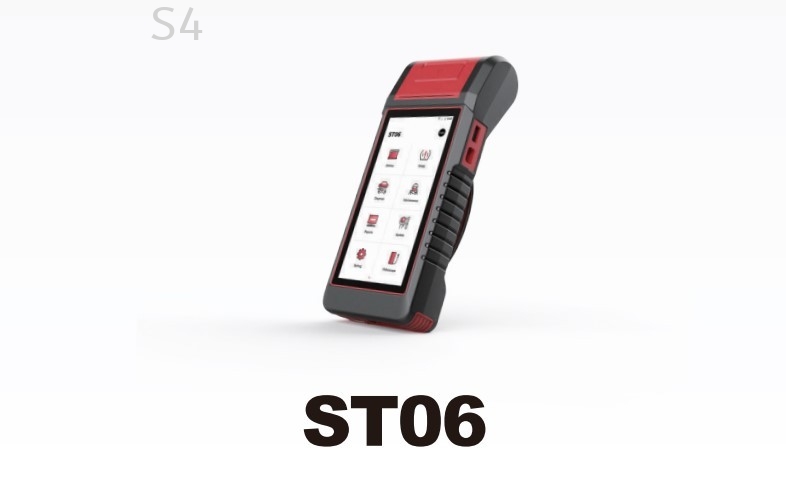

SMARTSAFE ST06 Intelligent Automotive Detection Diagnostic Tool

Model : ST06 (Old Name : iSmartTool 601Max)

ST06, the Best TPMS programming tool, is a powerful TPMS scanner suitable for over 98% of vehicles equipped with tire pressure systems worldwide.
SmartSafe, specially developed for repair shops, diagnoses tire sensor faults. Therefore, ST06 is your ideal choice!

ST06 is more than just a tire pressure sensor tester; it's a multifunctional tool that also integrates battery testing and car diagnosis.
In terms of car diagnostics, it offers a comprehensive solution tailored for repair shops!

Functions	Description	√
Battery Detection	Supports two methods of in-vehicle detection and out-of-vehicle detection, supports battery health test, start-up test, charging test, battery barcode scanning, and battery matching	√
Tire Pressure Detection	Support 315MHz/433MHz tire pressure sensor activation and learning, support reading tire pressure, tire temperature, battery status and other information, and can read, copy, and write sensor ID values	√
Vehicle Detection	Support for code reading, code clearing, data stream reading, action testing, special functions and other full-system and full-function detections	√
Maintenance Function	Support 26 common maintenance functions, such as maintenance light reset, throttle matching, brake pad replacement, steering angle reset, anti-theft matching, ABS bleeding injector coding, DPF regeneration, sunroof initialization, Gearbox matching, etc	√
Test Report	Support the display of battery tests, tire pressure monitoring, fault detection, data flow and other reports	√
Software Upgrade	Support online upgrades, including model software, firmware software, and APP software	√
Module Expansion	Support the expansion of videoscope functions	√
Report Printing	Support printing reports through the built-in thermal printer	√

---

Specification

CPU	4 Core 2.0GHz	Camera	8MP
System	Android	Wi-Fi	2.4GHz/5GHz
Memory	4GB	Interface	DB15 diagnostic connection
Storage	64GB		Battery clip connector
Display Size	5.99 inch		USB Type A, USB Type C
Resolution	720 X1440	Working Temperature	0~45°C
Battery Capacity	4500mAh/7.6V	Storage Temperature	-10~60°C

---
