AUTEL MaxiSYS Ultra EV Professional Diagnostic Scanner

AllEV Specialist Tools, Equipment & Solutions

Previous 25 / 36 Next

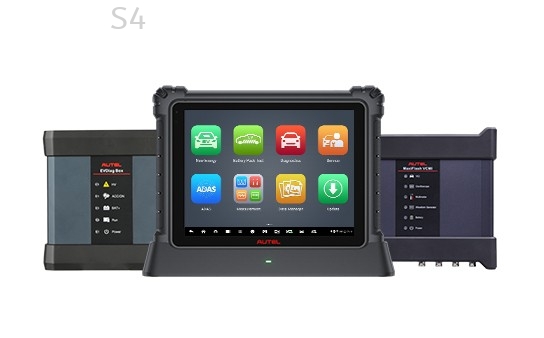

AUTEL MaxiSYS Ultra EV Professional Diagnostic Scanner

IntroductionIntroduction & Short Explanation

Download Files

Autel_MaxiSYS_Ultra_EV_User_Manual.pdf (11.99 MB)

AUTEL MaxiSYS Ultra EV PROFESSIONAL DIAGNOSTIC TOOLS

Electric Vehicle Car Diagnostic Tool With VCMI and EVDiag Box & Advanced EV Diagnostics with MaxiFlash VCMI

The MaxiSys Ultra EV is a new generation of automotive diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.
  • Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
  • Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
  • Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
  • State of Charge and State of Health analysis for true battery condition
  • Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specification

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 256GB On-board Memory
Display 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (Two USB HOST Type A, one USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 18000mAh 3.8 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Important Info
 1. Product designs and specifications are subject to change without prior notice
2. Please check stock availability with us before purchase.
3. Special order items require pre-order:
Pre-Order Waiting ETA :
Malaysia Warehouse (Non-Johor) : 3 - 5 Working Days
Overseas Order : 1 - 3 Months (Working Day)
